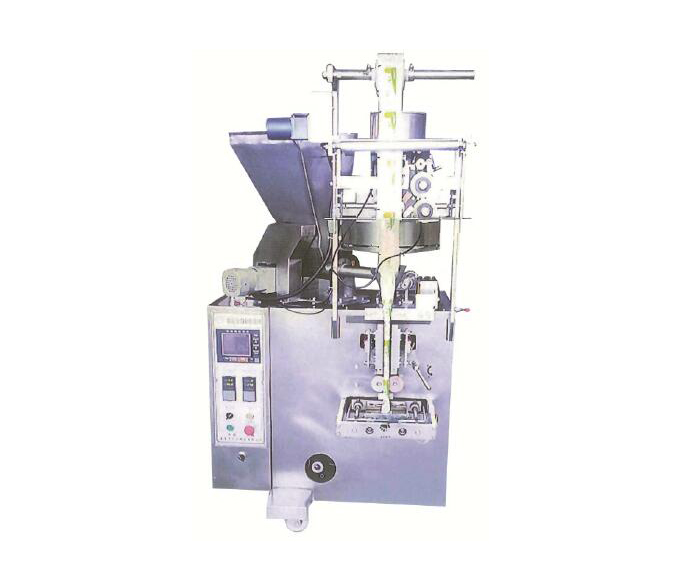

OCL-320雙下料全自動包裝機 Double blanking automatic packaging machine
全國服務熱線：
159-1595-6886（微信同號）用途：Application
本機采用顯示屏控制系統，客戶只需要在顯示屏上設定所需的袋子長度，包裝量?？刂葡到y則整機自動調節，達到最佳包裝速度。先進的光電控制系統能將包裝袋準確分切，保證包裝袋的圖標完整。使用進口無極調速式可調性下料系統，可自動實現制袋，計量，填充，封口，計數，分切全過程。
This machine adopt display screen control system customers only need to set the bag length and filler amounts on the screen machlRe will automatically adjust to the best package speed. Advanced photoelectric control system make sure precised bag cutting，guarantee the ful logo of the bag Filling system adopts stepless speed transmission we can achieve the whole packing process like bag forming, metering。filling，sealing, counking and cutting.
功能：Function
適用于食品，化工，醫藥，調味品等粉狀，顆粒狀，液體狀等無粘性物料包裝。
Suitable to powdery, granular. liquid and non一coherent material offood chemical。medicine. seasoning industry
備注：P.S
可根據需要添加沖孔裝置。
Punching device is available.
技術參數：Technical Parameter
| 袋型Sachet type | 三/四邊封3/4 sides | |
| 背封back seal | ||
| 袋子尺寸范圍 | 最大尺寸Max.Size | 140mm(W)x160mm(L) |
| Sachet size range | 最小尺寸Min.Size | 40mm(W)x50mm(L) |
| 計量范圍 Filling Rate | 客戶定制(cusromized) | |
| 包裝速度 Packfng Speed | 30-70 bagslmin | |
| 主機功率 Electricity Pawer | 3.5kw | |
| 電源要求 Working Voltage | 220V/50Hz | |
| 卷膜直徑 Film Roll Diameter | 450 mm | |
| 最大膜寬 Max Film Width | 320mm | |
| 機器尺寸 Machine dimension | 3320x980x1550 mm | |
| 機器重量 Machine Weieht | 300kg | |
